Introduction：

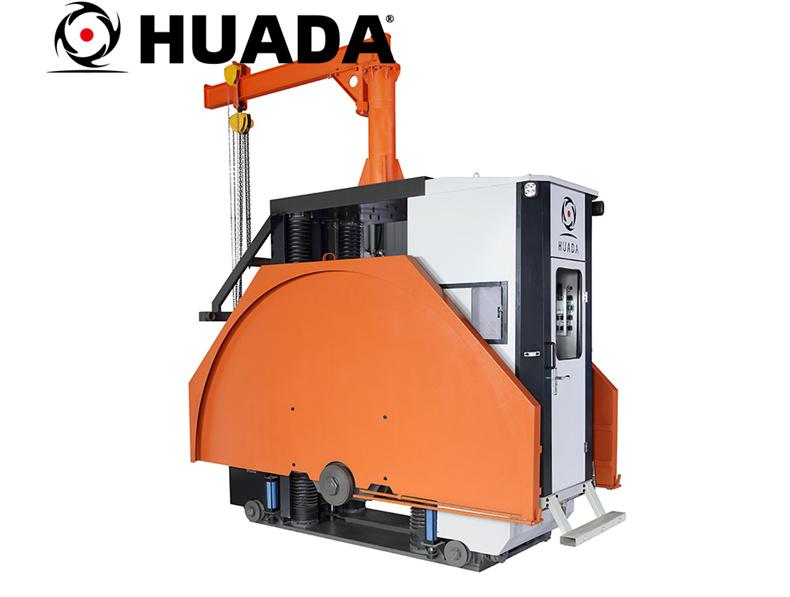

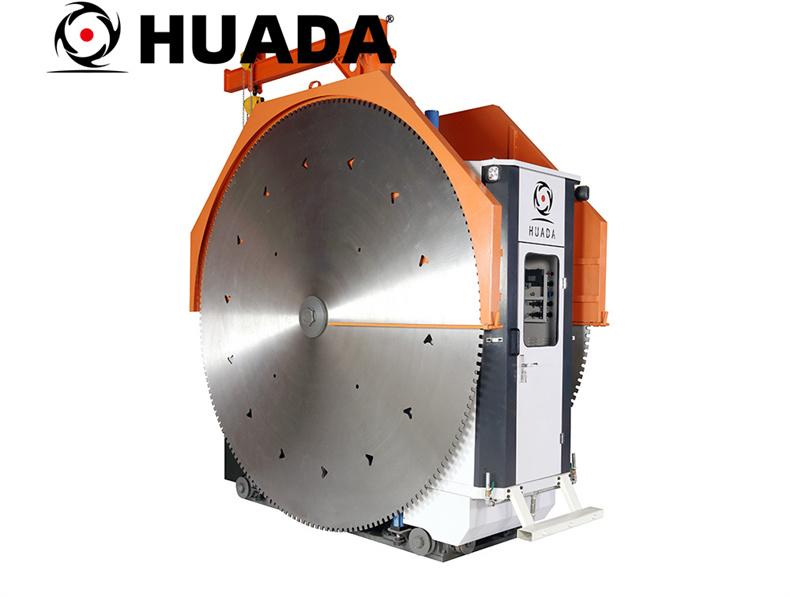

Double Blade Quarrying Machine (HD Series)
Price：>5000$ Please contact with the customer service for specific price details
+8619859567581
Double blade stone quarrying machine Features:
1. With belt drive design, the motor and gear drive system are not easily damaged.
2. The four guide pillars are enclosed and protected, and the stronger guide pillars are supplemented by chrome plating and fine grinding processes to ensure the stability and accuracy of the whole machine structure.
3. The two drives adopt double chain transmission to improve safety. Four-wheel drive adopts closed modular design, simple maintenance and high reliability.
4.Brand electronic control components and electronic control systems are designed for the quarrying environment, adapting to the harsh working conditions of low voltage, dust and humidity.
Double blade stone cutting machine Parameters：
|
Product model |
DBM1360-1900/GV |
DBM1500-2100/GV |
DBM1950-2450/GV |
DBM2600-3100/GV |
|
Blade diameter (mm) |
Φ2400x2-Φ3600x2 |
Φ2400x2-Φ3600x2 |
Φ2200x2-Φ4200x2 |
Φ2200x2-Φ4200x2 |
|
Cut width (mm) |
1360-1900 |
1500-2100 |
1950-2450 |
2600-3100 |
|
Max cut depth (mm) |
1550 |
1550 |
1850 |
1850 |
|
Main motor power (kW) |
75*2 |
75*2 |
75*2 |
75*2 |
|
Total power (kW) |
158 |
158 |
158 |
158 |
|
Water consumption (m³/h) |
5 |
5 |
5 |
5 |
|
Track spacing (mm) |
1140 |
1290 |
1670 |
2200 |
|
Dimension (L×W×H)) |
4150×1540×3100 |
4150×1680×3100 |
4800×2140×3100 |
4800×2800×3100 |
|
Total weight (kg) |
8500 |
8800 |
11000 |
12000 |
Features ●With belt drive design, the motor and gear drive system are not easily damaged. ●The four guide pillars are enclosed and protected, and the stronger guide pillars are s...
Double blade cutting stone machine Features: 1. With belt drive design, the motor and gear drive system are not easily damaged. 2. The four guide pillars are enclosed and protected, a...
Features Safety PLC program + frequency converter dual protection, stop immediately in abnormal conditions such as blade jamming or blade nipping. Efficiency ● Three inverters ...
