DWS-18 is the 18.5 kW concrete wire-saw option on this page. It is intended for bridge and reinforced-concrete cutting, with a compact rail-mounted layout and dual-inverter control named in the old description.
DWS-18 figures from the shared table
| Main motor | 18.5 kW (25 HP) |
|---|---|
| Total power | 19 kW (26 HP) |
| Wire speed | 0–30 m/s |
| Dimensions | 2200 × 830 × 860 mm |
| Machine weight | 410 kg |
| Rail package | 2 m plus two 1.5 m sections; 36.5 kg per section |
The source table also displays DWS-22, but this article's title and product focus are DWS-18. Keep the selected model explicit in the quotation.
Lay out the concrete cut before positioning rails
Provide the structural drawing, cut plane, reinforcement information, access and anchoring points. Plan the wire and pulley route and the method for collecting cooling water. The dual-frequency-converter note describes the control arrangement; it does not remove the need to match wire tension and feed to the actual section.
Acceptance cut for DWS-18
- Confirm power, rails, controls, pulleys and wire supplied
- Record concrete section and reinforcement encountered
- Verify anchoring and wire route before operation
- Measure cut area, elapsed time and finished opening
- Inspect wire condition and save the operating record
Photograph the rail and pulley layout so a later cut can reproduce the accepted machine setup reliably.

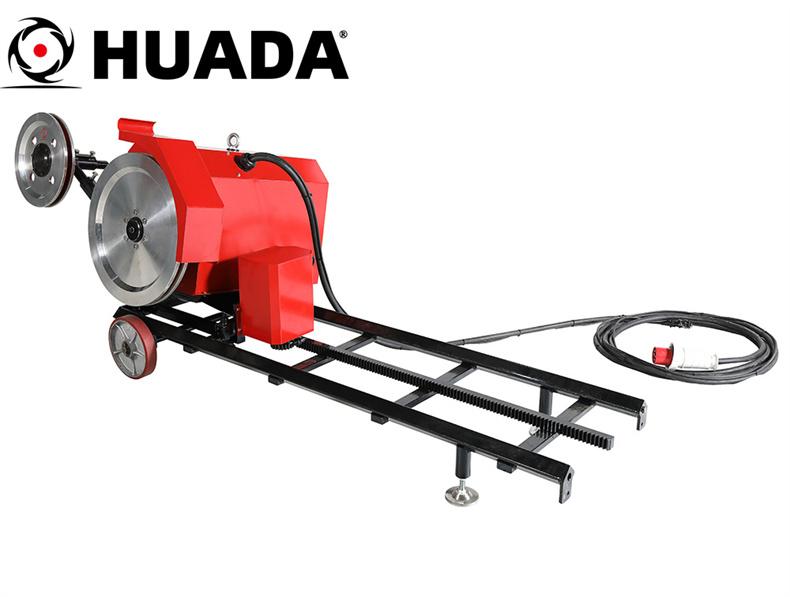

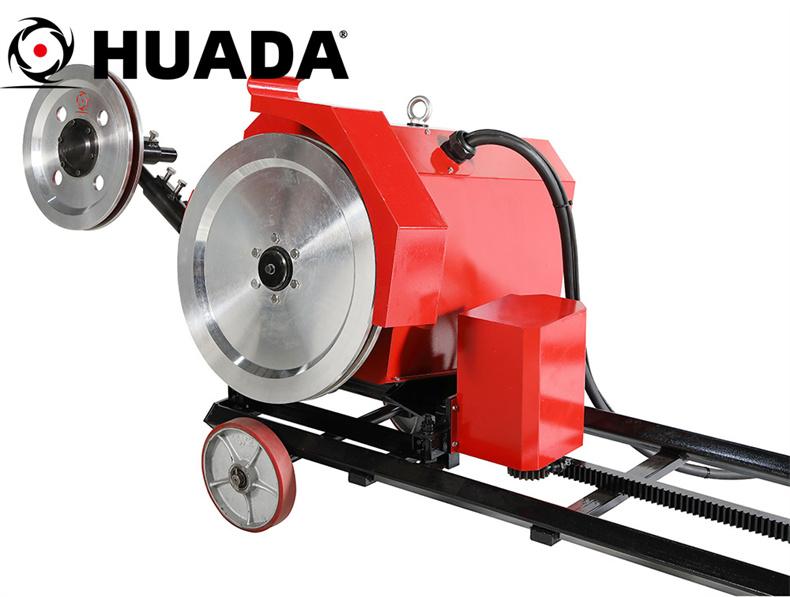

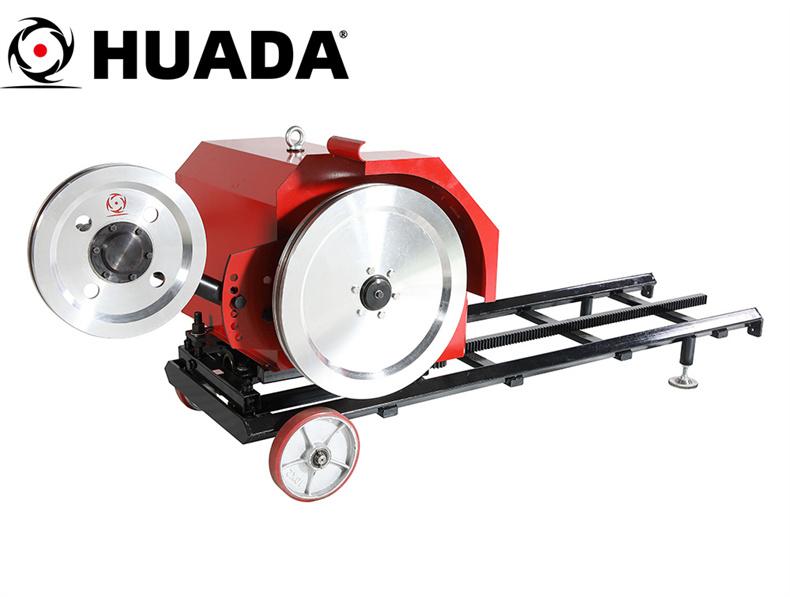

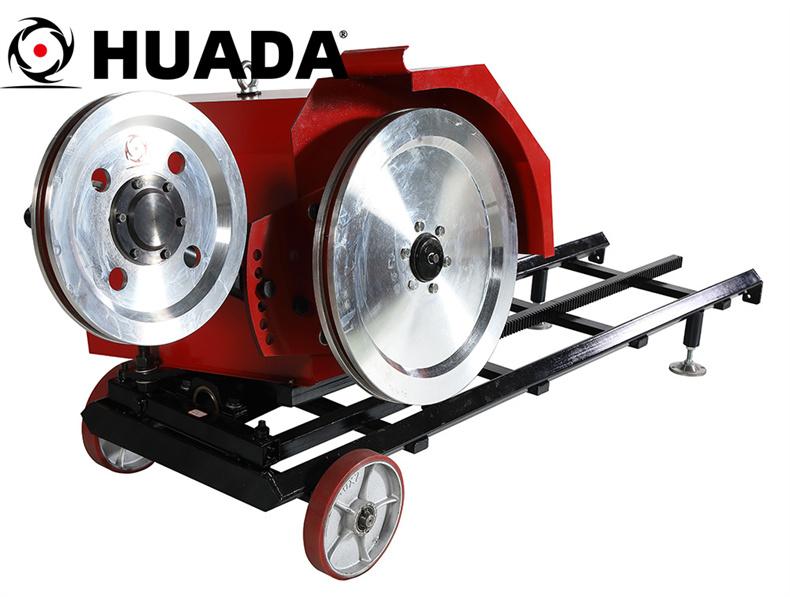

Original product images
